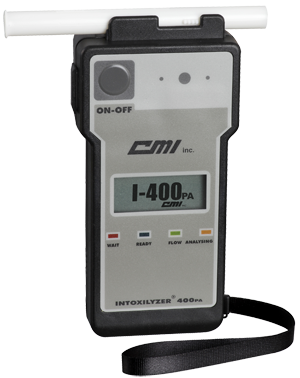

The Intoxilyzer 400PA is simple to operate and fully automatic. Though approved for DOT usage, this device is ideal for nonDOT mass screening of subjects using a reusable sampling cup and eliminating the need for a mouthpiece for each person. The I-400PA can also be configured at the factory to a customer’s specific requirements, allowing for additional flexibility. This device does not come with a printer.
Detector
Electrochemical fuel cell
Specificity
Fuel cell sensor is unaffected by acetone, paint and glue fumes, foods, confections, methane, and practically any other substance found in the human breath.
Instrument Control
By microcontroller
Sampling
Automatic after the subject blows for 4-6 seconds
Accuracy
±.005 BrAC up to 0.100 BrAC and ±5% above 0.100 BrAC, which meets DOT specifications
Response Time
Within five seconds of sampling, depending on alcohol concentration
Reset Time
Immediate at zero alcohol reading, up to two minutes after a positive breath test
RF Interference
The plastic used for the instrument’s housing contains embedded protection from radio frequency interference.
Display
Four-digit LCD
Audible Indicator
Beeper signals fault conditions and changes in instrument status.
Visual Indicator
Four LED lights indicate status (Wait, Ready, Flow, Analyzing)
Calibration
Dry gas or wet bath simulator. Instrument can be configured to disable itself if calibration is overdue.
Communications Port
Two-channel, RS-232 serial interface to printer or PC
Memory Function
Stores more than 500 test results including date and time. Reprints last breath test even if instrument has been switched off and main power source is removed. Stored tests can be downloaded to the printer or a PC.
Optional Memory
Additional memory capacity up to 5,000 total tests is available
Recommended Operating Temperature
23° to 104°F (-5° to 40°C). The fuel cell is automatically heated at low temperatures.
Dimensions
3¼” wide x 1¾” deep x 6¾” high
Weight
One pound (.45 kg)
Power Supply
Five “AA” batteries (included)
Optional Accessories
Calibration key, printer, printer paper, rechargeable power unit, 12-volt power supply, waterproof case, Data-400 software for downloading of test results to a PC, OnLine-400 software for controlling the test process directly from a PC, calibration supplies, custom factory configuration of your instrument to a wide range of capabilities
Warranty
One year, parts and labor
